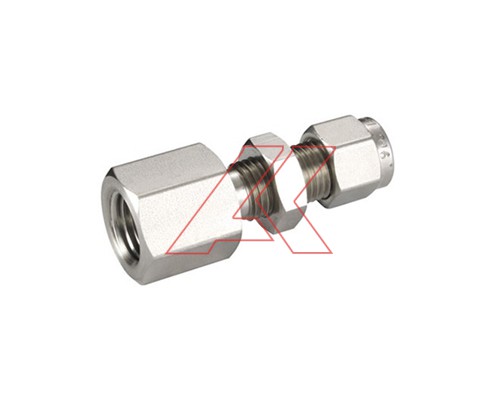

Bulkhead Female Connector
FRACTIONAL TUBE TO MALE NPT THREAD CONNECTION
| PART No. | TUBE OD |
NPT FEMALE THREAD |
DIMENSIONS IN INCHES | PANEL HOLE |
PANEL THICKNESS |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | Fx | G | L | Lx | |||
| 02-HLBFC-02N | 1/8 | 1/8 | 0.41 | 0.09 | 9/16 | 9/16 | 7/16 | 1.50 | 0.97 | 21/64 | 0.5 |
| 03-HLBFC-02N | 3/16 | 1/8 | 0.41 | 0.12 | 9/16 | 9/16 | 1/2 | 1.53 | 1.00 | 25/64 | 0.5 |
| 04-HLBFC-02N | 1/4 | 1/8 | 0.41 | 0.19 | 5/8 | 5/8 | 9/16 | 1.56 | 1.02 | 29/64 | 0.4 |
| 04-HLBFC-04N | 1/4 | 1/4 | 0.59 | 0.19 | 3/4 | 3/4 | 9/16 | 1.75 | 1.02 | 29/64 | 0.4 |
| 05-HLBFC-02N | 5/16 | 1/8 | 0.41 | 0.25 | 11/16 | 11/16 | 5/8 | 1.66 | 1.12 | 33/64 | 0.44 |
| 05-HLBFC-08N | 5/16 | 1/2 | 0.78 | 0.25 | 11/16 | 11/16 | 5/8 | 2.03 | 1.12 | 29/64 | 0.4 |
| 06-HLBFC-04N | 3/8 | 1/4 | 0.59 | 0.28 | 3/4 | 3/4 | 11/16 | 1.88 | 1.15 | 37/64 | 0.44 |
| 08-HLBFC-06N | 1/2 | 3/8 | 0.59 | 0.41 | 15/16 | 15/16 | 7/8 | 2.03 | 1.25 | 49/64 | 0.5 |
| 08-HLBFC-08N | 1/2 | 1/2 | 0.78 | 0.41 | 1-1/16 | 15/16 | 7/8 | 2.22 | 1.25 | 49/64 | 0.5 |
| 10-HLBFC-08N | 5/8 | 1/2 | 0.78 | 0.5 | 1-1/16 | 1-1/16 | 1 | 2.25 | 1.28 | 57/64 | 0.5 |
| 12-HLBFC-12N | 3/4 | 3/4 | 0.81 | 0.62 | 1-3/8 | 1-3/16 | 1-1/8 | 2.50 | 1.47 | 1-1/64 | 0.66 |
| 14-HLBFC-12N | 7/8 | 3/4 | 0.81 | 0.72 | 1-3/8 | 1-3/8 | 1-1/4 | 2.78 | 1.69 | 1-9/64 | 0.66 |
| 16-HLBFC-16N | 1 | 1 | 1 | 0.88 | 1-5/8 | 1-5/8 | 1-1/2 | 3.19 | 1.78 | 1-21/64 | 0.75 |
Different sizes or material are available upon request.
All dimensions are subject to change without prior notice, used for reference only.
METRIC TUBE MALE NPT THREAD CONNECTION
| PART No. | TUBE OD | NPT FEMALE THREAD |
DIMENSIONS IN INCHES | PANEL HOLE |
PANEL THICKNESS |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | Fx | G | L | Lx | |||
| 06M-HLBFC-02N | 6 | 1/8 | 10.4 | 4.8 | 16.0 | 16.0 | 14 | 39.7 | 26.2 | 11.5 | 10.2 |
| 06M-HLBFC-04N | 6 | 1/4 | 15.0 | 4.8 | 19.0 | 16.0 | 14 | 44.5 | 26.2 | 11.5 | 10.2 |
| 08M-HLBFC-02N | 8 | 1/8 | 10.4 | 6.4 | 18.0 | 18.0 | 16 | 42.1 | 28.5 | 13.1 | 11.2 |
| 10M-HLBFC-04N | 10 | 1/4 | 15.0 | 7.1 | 19.0 | 19.0 | 19 | 47.6 | 29.4 | 16.3 | 11.2 |
| 12M-HLBFC-06N | 12 | 3/8 | 15.0 | 10.4 | 25.0 | 24.0 | 22 | 50.8 | 31.8 | 19.5 | 12.7 |
| 12M-HLBFC-08N | 12 | 1/2 | 19.8 | 10.4 | 27.0 | 24.0 | 22 | 56.3 | 31.8 | 19.5 | 12.7 |
Different sizes or material are available upon request.
All dimensions are subject to change without prior notice, used for reference only.
