Lap Joint Flanges

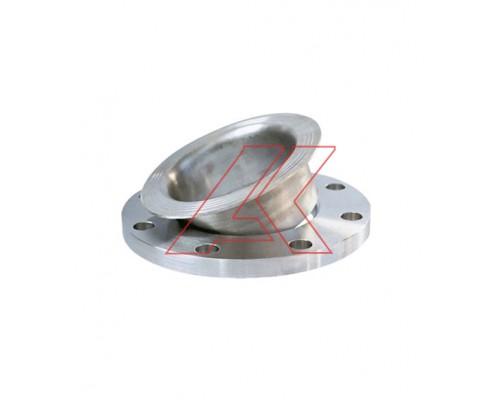

Lap Joint flanges are used on piping fitted with lapped pipe or with lap joint stub ends. The lap joint flange with the stub end assembly are normally used in systems requiring frequent dismantling for inspection and cleaning and where the ability to swivel flanges and to align bolt holes materially eases the erection of large diameter or unusually stiff piping. We can offer a comprehensive range of Lap Joint Flange for the right technical solution. Ak Hydraulic & export wide selections of ANSI B16.5 Lap Joint Flange & ASME B16.47 Lap Joint Flange at most attractive price as per customer requirements, we can also manufacture Lap Joint Flange in ASTM/ASME/ANSI grades as per our customer budget, we enjoy the reputation supplying Lap Joint Flange at cheapest in steel industries around the globe.
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter - A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter - D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness - B | 11.2 | 14.3 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| Diameter - G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter - K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height - H | 16 | 22 | 22 | 22 | 32 | 32 | 40 |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter - L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
