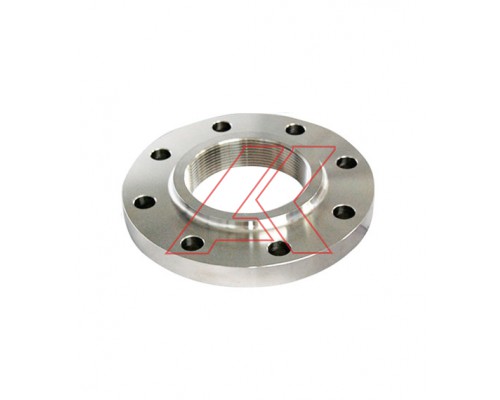

Threaded Flanges

$0.00
  • Product Code:Threaded Flanges

Threaded flanges are widely demanded as pipe flanges used in different industrial applications. They are the special type of pipe flanges which can be attached to the pipe without welding. Threaded flanges are threaded in the bore which matches an external thread on the pipe. We can offer a comprehensive range of Threaded Flange for the right technical solution. Ak Hydraulic & export wide selections of ANSI B16.5 Threaded Flange &ASME B16.47 Threaded Flange at most attractive price as per customer requirements, we can also manufacture Threaded Flange in ASTM/ASME/ANSI grades as per our customer budget, we enjoy the reputation supplying Threaded Flange at cheapest in steel industries around the globe.



Class 150 300 400 600 900 1500 2500
Diameter - A 30 38 38 38 38 38 43
Diameter - D 90 95 95 95 120 120 135
Thickness - B 9.6 12.7 14.3 14.3 22.3 22.3 30.2
11.2 14.3 20.7 20.7 28.7 28.7 36.6
Diameter - G 35.1 35.1 35.1 35.1 35.1 35.1 35.1
Diameter - K 60.3 66.7 66.7 66.7 82.6 82.6 88.9
Height - H 14 21 22 22 32 32 40
15.6 22.6 28.4 28.4 38.4 38.4 46.4
Bolt Holes 4 4 4 4 4 4 4
Diameter - L 15.9 15.9 15.9 15.9 22.2 22.2 22.2
Stud Bolts Diameter x Length
Diameter (in) 1/2 1/2 1/2 1/2 3/4 3/4 3/4
Length (mm) 55 65 75 75 110 110 120
