Blind Flanges

$0.00
  • Product Code:Blind Flanges

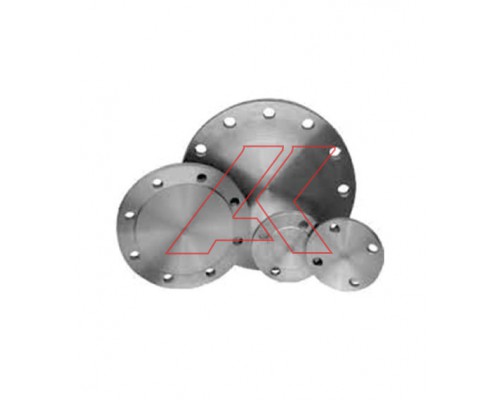

A popular category of pipe flange is the blind flange. A blind flange is used to close ends of piping systems. It is a kind of round plate with no center hold but with all the proper bolt holes. We can offer a comprehensive range of Blind Flange for the right technical solution. Ak Hydraulic & export wide selections of ANSI B16.5 Blind Flange & ASME B16.47 Blind Flange at most attractive price as per customer requirements, we can also manufacture Blind Flange in ASTM/ASME/ANSI grades as per our customer budget, we enjoy the reputation supplying Blind Flange at cheapest in steel industries around the globe.



Class 150 300 400 600 900 1500 2500
Diameter - D 90 95 95 95 120 120 135
Height - B 9.6 12.7 14.3 14.3 22.3 22.3 30.2
11.2 14.3 20.7 20.7 28.7 28.7 36.6
Diameter - G 35.1 35.1 35.1 35.1 35.1 35.1 35.1
Diameter - K 60.3 66.7 66.7 66.7 82.6 82.6 88.9
Bolt Holes 4 4 4 4 4 4 4
Diameter - L 15.9 15.9 15.9 15.9 22.2 22.2 22.2
Stud Bolts Diameter x Length
Diameter (in) 1/2 1/2 1/2 1/2 3/4 3/4 3/4
Length (mm) 55 65 75 75 110 110 120
